Create/Update Connections

Requirements:

Activepieces version 0.34.5 or higher
SDK version 0.3.2 or higher

If you would like your users to use your own OAuth2 apps, we recommend you check this.

“connectionName” is the externalId of the connection (you can get it by hovering the connection name in the connections table).
We kept the same parameter name for backward compatibility, anyone upgrading their instance from < 0.35.1, will not face issues in that regard.

Breaking Change:

If your Activepieces instance version is < 0.45.0 and (you are using the connect method from the embed sdk, and need the connection externalId to be returned after the user creates it OR if you want to reconnect a specific connection with an externalId), you must upgrade your instance to >= 0.45.0

You can use the embedded SDK in your SaaS to allow your users to create connections and store them in Activepieces.

Initialize the SDK

Follow the instructions in the Embed Builder.

Call Connect Method

After initializing the SDK, you will have access to a property called activepieces inside your window object. Call its connect method to open a new connection dialog as follows.

<script>
activepieces.connect({pieceName:'@activepieces/piece-google-sheets'});
</script>

Connect Parameters:

Parameter Name	Required	Type	Description
pieceName	✅	string	The name of the piece you want to create a connection for.
connectionName	❌	string	The external Id of the connection (you can get it by hovering the connection name in the connections table), when provided the connection created/upserted will use this as the external Id and display name.
newWindow	❌	{ width?: number, height?: number, top?: number, left?: number }	If set the connection dialog will be opened in a new window instead of an iframe taking the full page.

Connect ResultThe connect method returns a promise that resolves to the following:

{
    connection?: {
        id: string,
        name: string
    }
}

name is the externalId of the connection. connection is undefined if the user closes the dialog and doesn’t create a connection.

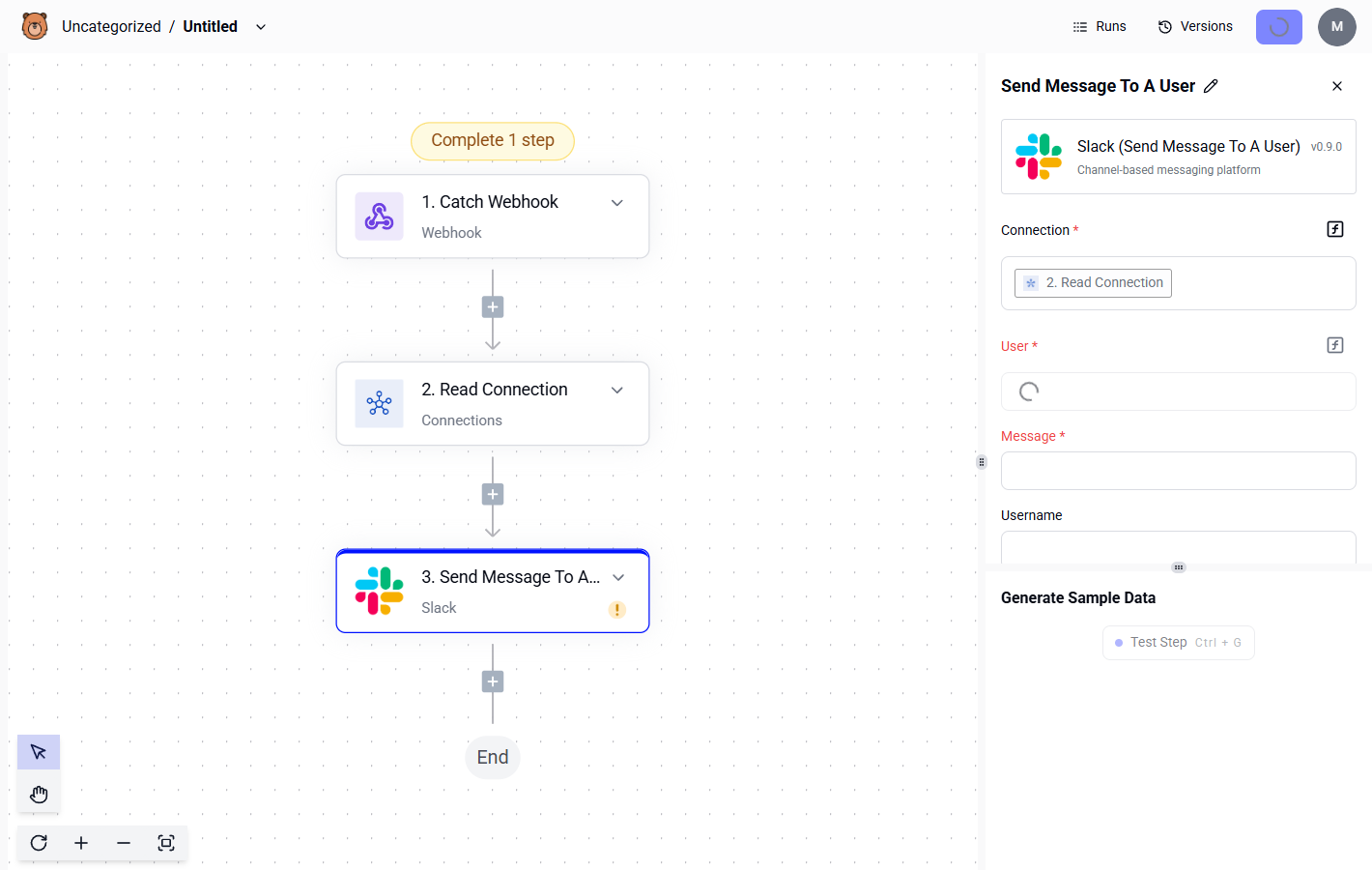

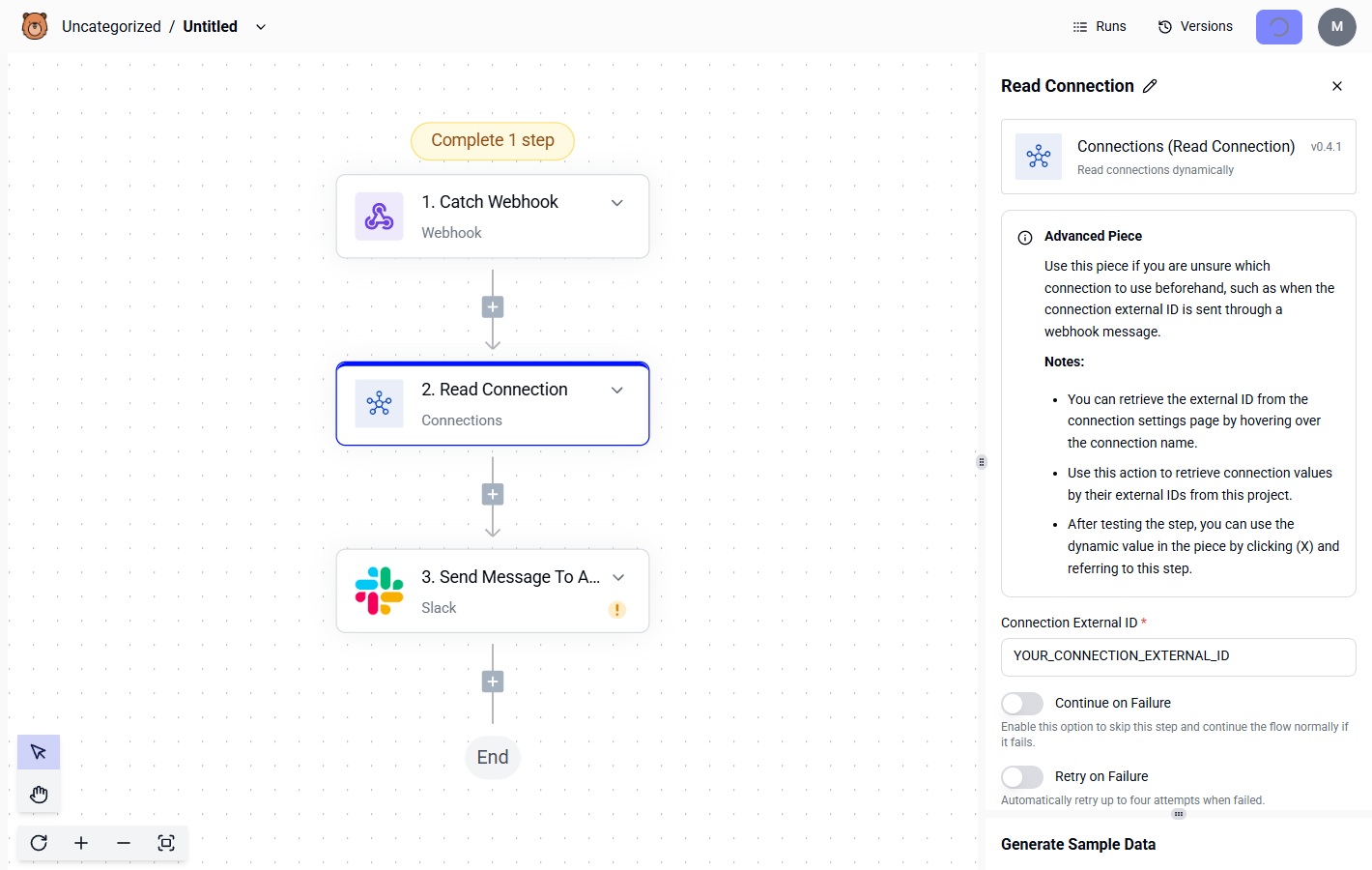

You can use the connections piece in the builder to retrieve the created connection using its name.
